It's got a cop motor, a 440-cubic-inch plant. It's got cop tires, cop suspensions, cop shocks

14437 Views 68 Replies 19 Participants Last post by  Gareth
And lots of other cool lines; if you're of a certain age, most of them are probably buried deep in your subconscious. But what's this got to do with slot cars?

I'm glad you asked... when I was developing the 1977 Dodge police car, one or two people mentioned that a Bluesmobile would be a cool thing to make. I'm sure we all know what it's like to have more good ideas than time to do them, so I parked that idea in the back of my head until, well, until its time came.

There's no 1:32 model of a Bluesmobile so far, or a '74 Dodge Monaco in 1:32 either. The '77 Dodge is close in terms of proportion but the front and back are quite different, and the waistline is different too. The Cadillac is being done straight from 3D CAD data and recently I managed to get hold of CAD data for the Bluesmobile. Just as with the Caddy, it needed some work to get from the surface model to something that can be made on a 3D printer. For a computer game, it doesn't really matter if there are tiny gaps in the mesh, but for a solid model it's got to be completely solid. I tried a few methods of "automatic repair" but it didn't work so off it went to be stitched together so it was suitable for printing.

But we're getting ahead of ourselves, let's get some pictures up

The surface model

Rear view of the surface model

Rendered surface model

The bodyshell is literally a shell now it's been stitched together, 3mm thick so it's solid enough to support itself and have a silicon mould taken from it

Rear and underside

And for comparison, the same view but as a wireframe mesh

Some 3D models are quite simple in terms of their mesh, once it's in a computer game you want it as simple as possible so it can move around without crunching up all the game memory. But for making a model, the tighter the mesh the better level of detail and smoother the curves will be. As you can see, this is pretty complicated!

The wheel centres should be the same as the early ones I had on the '77 Dodge so they already exist, I'm now waiting for the 3D print to come back so I can check its quality. Then it's the long road to preparing it and getting it moulded. It's 106 miles to Chicago....
See less See more
61 - 69 of 69 Posts
Finished, at last!

I've made the body posts a little longer so the police car sits higher than the Bluesmobile, just so it looks more out of control through the corners. On the track they're fantastic

See less See more
I was outside for a few time, I missed this project and discover it today... hope you will have some more project
See less See more
Completely brilliant .......
See less See more
Hilarious, this is a brilliant concept, c-I. I was watching Bullit (again) yesterday, and your video looks like a replay. Great!

Nearly finished my Bluesmobile, just need to fit the wheel inserts and do some weathering to the paint.

The '72 Charger is also coming along nicely.

See less See more

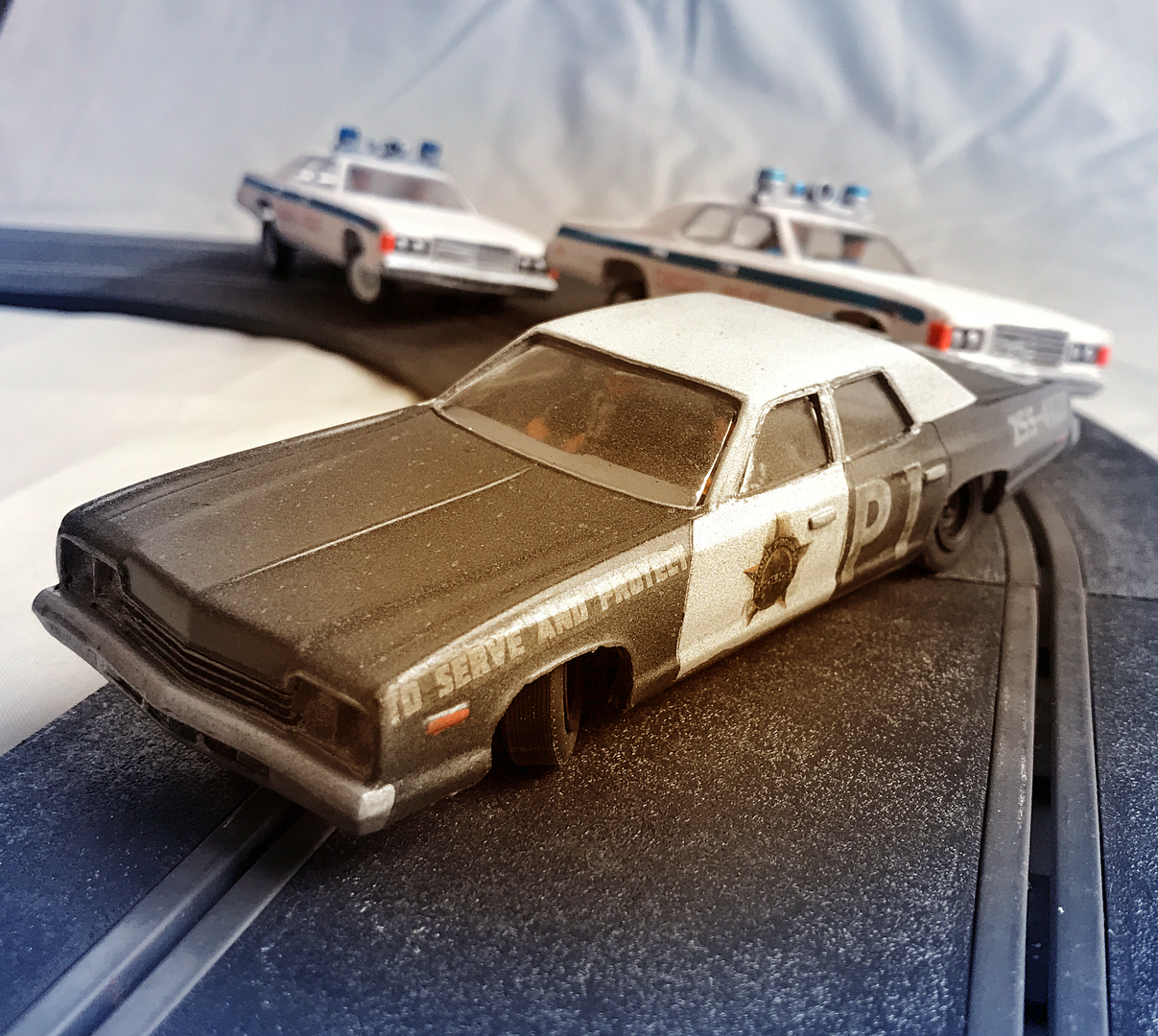

Thanks to the wonders of the internet, lots of the pictures on this thread have broken. However I made up a couple of these models for someone so thought I'd show you how they look.





But just before they were sent out to their new owner, I thought I'd have a go at shooting another video. The one I made several years ago had the wrong police car (because I hadn't done the Chicago police car at that stage) and as I'd chosen the video's background music from the movie, YouTube blocked it. So here's a new one, shot last week but with the same nod given to the original film. Hope you like it.

See less See more
  • Like
Reactions: 1
Fantastic Idea, builds and video hats off to you Sir.

That was one of the coolest slot car videos ever! Top work Gareth.
