pcb chassis

3790 Views 2 Replies 1 Participant Last post by 1 32 slotter, May 2, 2015

1 32 slotter

Discussion Starter · May 2, 2015

Here's my efforts to date. Still a lot more to do. More parts on order. Will go into more detail at a later date.

See less See more

Save

1 - 3 of 3 Posts

1 32 slotter

Discussion Starter · #2 · May 2, 2015

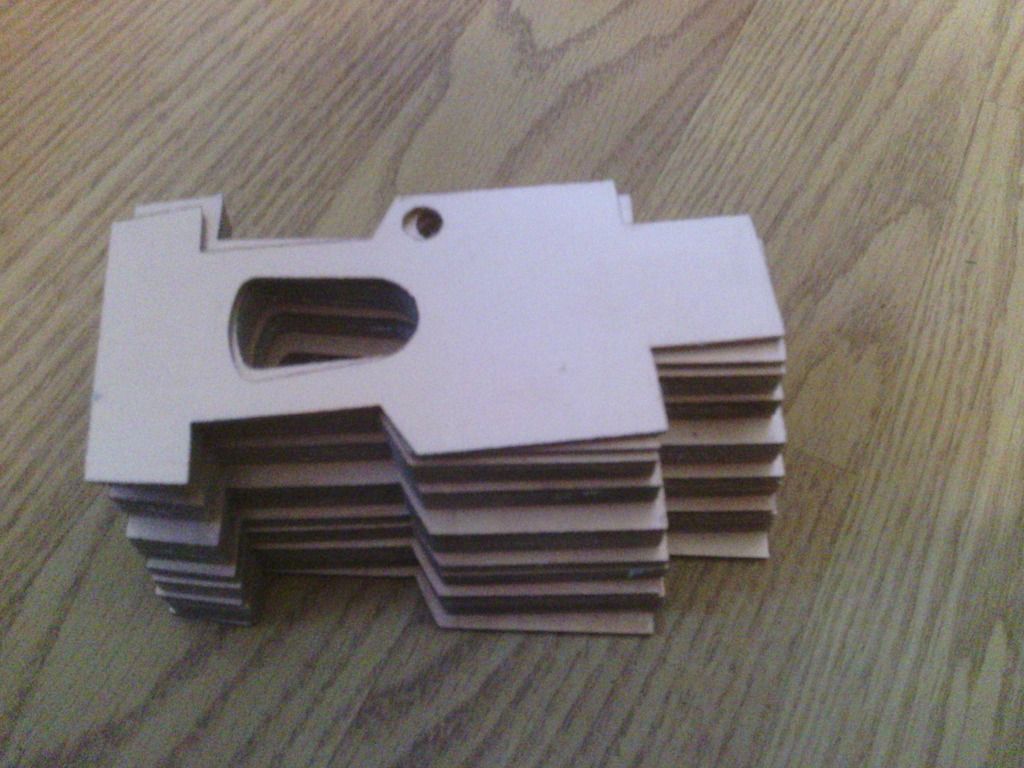

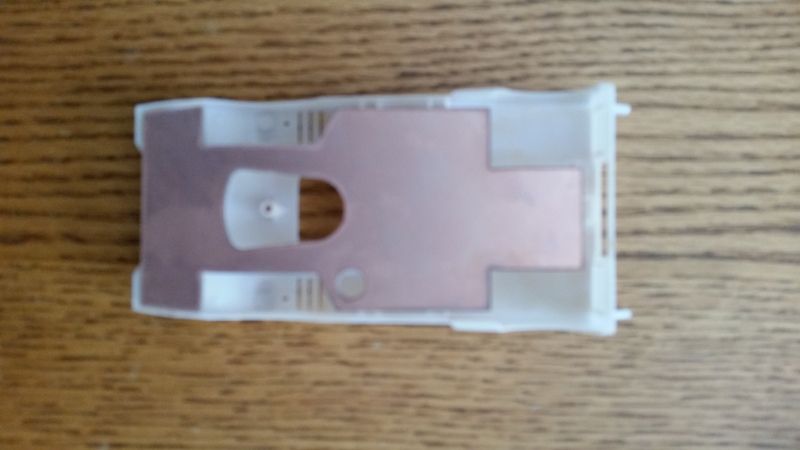

More pics.....

See less See more

Save

1 32 slotter

Discussion Starter · #3 · May 2, 2015 (Edited by Moderator)

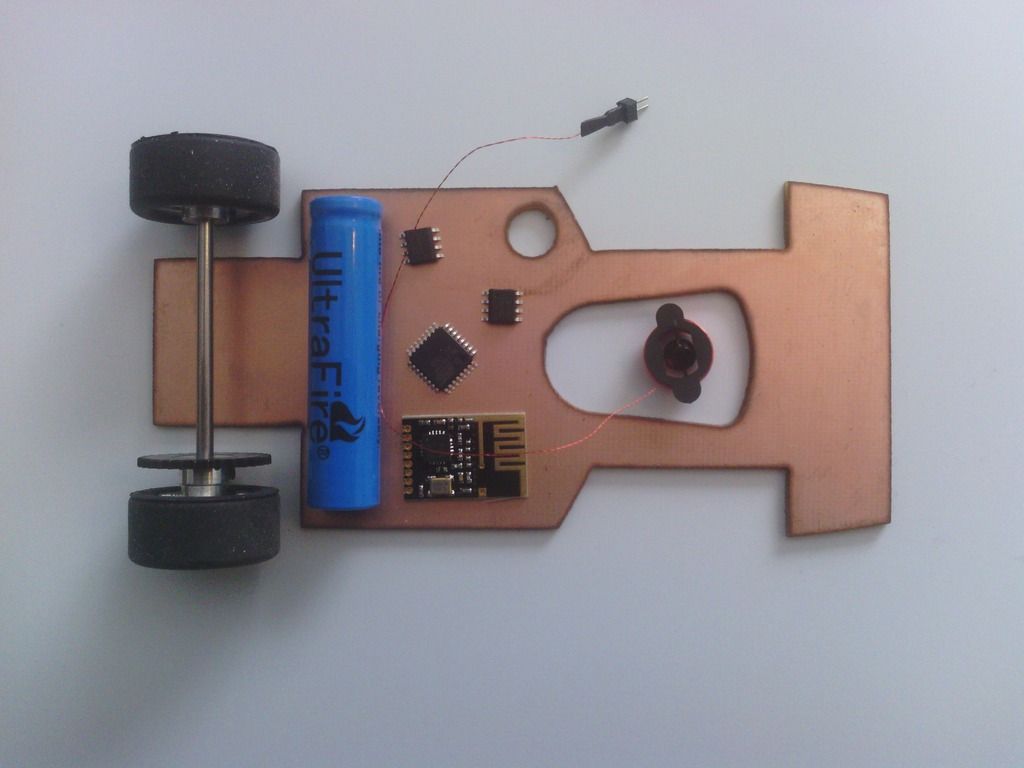

List of project as to date.

PCB.... FR-4, .060 Thick, 1 oz. copper, Double Sided...........

Cutting file.. martinprice2004 SF member

Waterjet cutting. .. Dave Zumstein from machineworks.

Battery. .. UltraFire 3.6 volt.

Microcontroller.... ATMEGA328P-AU...

Communication.... Wireless Transceiver Module.2.4 GHz

Motor drivers. .... PCS LG9110S SOP-8

Magnetic Actuator.... Micro flight. (Will be making my own. )
