In the beginning Lee decided to build a Oval Race Track

Lee Thorndike built it - hence the name


But while he is good with a saw and router he is no good at posting on here so I have posted it for him

Well done Lee it looks a great track

Starting the routing

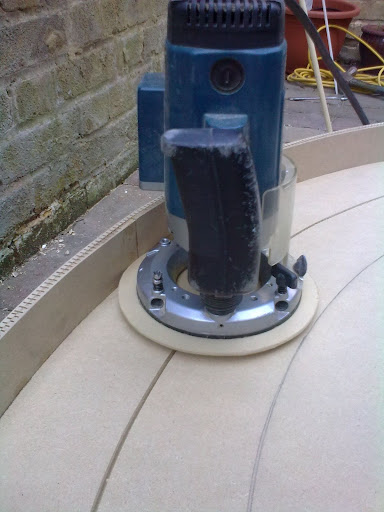

The inner lane

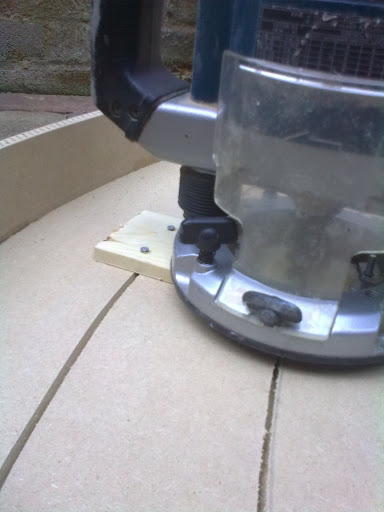

The Jig to keep the lanes straight when doing the rebate for the braid and also the correct distant apart on the bends

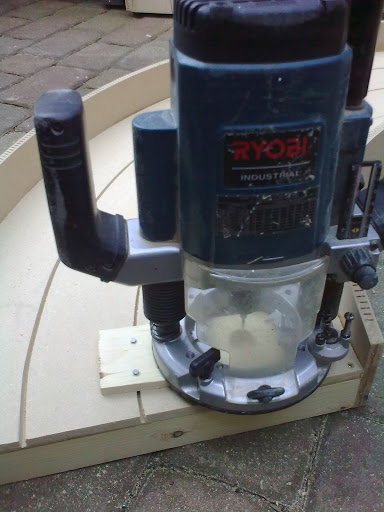

It doing the inner lane



And moved around to keep it inline whilst rebating the slot for the braid so it sits flush to the track

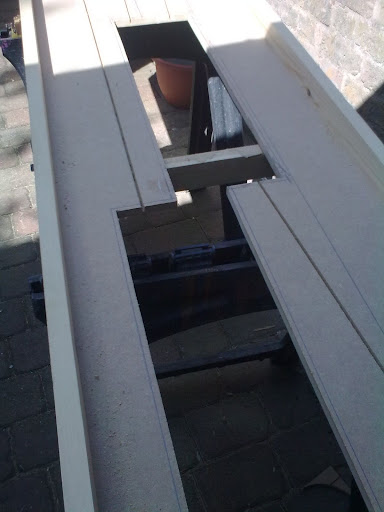

The cut outs for the lane changers



And with the track pieces in position



The back straight cut in



And the power base now added



And the track in full view - Just needs to painted now



Nice work Lee


Not bad for a Saturday afternoon's work Lee


Since then we have added




And here are the Nascars being prepped



The Track Runs

PB PRO SH 13.8V 20 AMP Power
PIT PRO
SSDC V5 For race control
Plus A RICHG LAP TOWER
PLUS FLAT SCREEN DISPLAY


And here it is in it's new Home



For more details of race nights please contact me on the forum on the EMail above

HOPE TO SEE LOT'S OF YOU NEXT RACE NIGHT

Michael


·
No1 super guy
Joined
·
1,667 Posts
Hi Michael,
looks great

Wish the club longevity, I'd love to come along, once my work life is sorted (read, when I have one) I'll certainly pay a visit, or 2 or 3 or......
Mike


·
Registered
Joined
·
2,036 Posts
Discussion Starter · #5 ·
So as promised here is the latest update to the track

A new curve being constructed

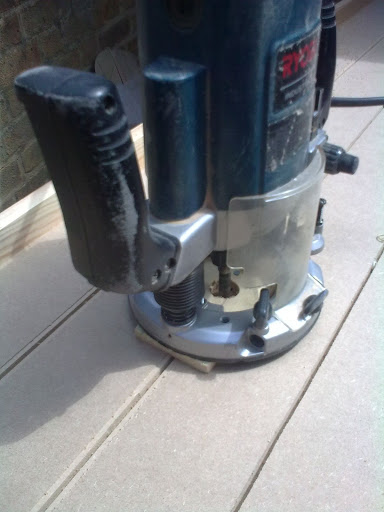

New STRAIGHTS Being "Routed"

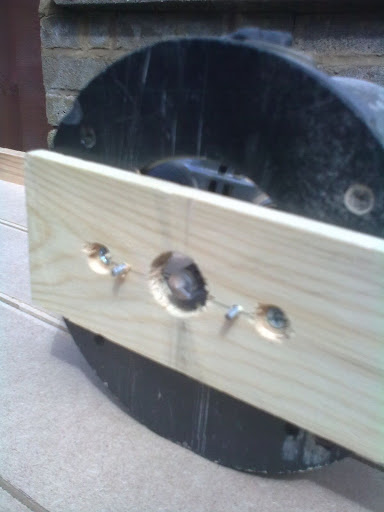

The NEW Jig for keeping it all inline



Don't think it's going to fit in there






Looking Good



More to follow once it's braided and painted and ready to race

Michael


·
Premium Member
Joined
·
431 Posts
Just thought I would add that this race track is to big to race at our location
so it will be run on a saturday in a hall in basildon essex.
Should be in spring some time.
So if anyone is keen to race just keep a look out for posts.
The good thing with the way I have built this track is it is sectional so I can just keep configuring it in different ways.
A bit like a huge scalextric set were the straights are 6 feet long.
I am also working on banked curves for the oval.
If anyone has ideas they are welcome.


·
Registered
Joined
·
15 Posts
Looks impressive. Do you have any details on the wiring? Power supply size and connections between the sections? Can you run it in analog mode? I notice it breaks out into 3 lanes from the APB is there no way to start with 3 lanes?

Sorry for all the questions but I'm in the process of researching track for a new club in Manchester.


I'd love to hear about the reliability of the digi setup in a club environment. Is it robust enough?


·
Premium Member
Joined
·
431 Posts
QUOTE (prdad @ 19 Feb 2012, 19:20) <{POST_SNAPBACK}>Looks impressive. Do you have any details on the wiring? Power supply size and connections between the sections? Can you run it in analog mode? I notice it breaks out into 3 lanes from the APB is there no way to start with 3 lanes?

Sorry for all the questions but I'm in the process of researching track for a new club in Manchester.


I'd love to hear about the reliability of the digi setup in a club environment. Is it robust enough?
The braids are terminated underneath in connector blocks and just have
kitchen link light connectors to join the track sections together.
we only run on standard scalextric supplies at the moment and haven't needed to upgrade.
no we don't run in analogue mode as we could only run two cars.
It could be ran three lanes across the start finish but I like the squeeze also the cross over.
makes things more interesting.
With the fuel strategy it is best to run the inside line until near the end of the race where we all tend to run the
outside for the speed.
We have had a few glitches but I think they are behind us now.
I think the biggest thing was changing to a desc top computer.
We are also analogue racers as well but we all now love the different style of racing digital has to offer.
If you need any more help don't hesitate
Regards Lee


·
Registered
Joined
·
2,036 Posts
To be fair to Lee There were no real issues with the track

The track started out life by going to be a plain Analogue oval then myself and Lee was talking at the club one night and I said about making it digital

Some errors were made early on but more thru Lee thinking like an analogue track rather than digital
And also down to the fact that the track is modular and can be erected and rigged ready to race in well under 1/2 an Hour from it being in the back of his truck

The only other problems we have had were with SSDC V5 not seeming to like the large race data we built up by running in a club race environment
over many race meetings and in trying different connectors to extend the controllers that caused us some issues and the powerbase USB cable conectors being a bit tempermental with the junction box to use the laptower

Last Summer the Track ran for 2 hours at my son's summer fate with over 25 races run without any problems
we were using SSDC V4 and a bunch of 5 to 10 year olds and to say it took a pounding is an understatement

I would confidently say that if we were to design and build a track from scratch I would be able to say it would work from the word go

All the problems were actually easily sorted once I got a chance with Lee to run a TEST session one morning
just the two of us as the track had had all its testing in a race night environment ( not a good idea )

Also SSDC is a lot more complex to get all the settings right than a general analogue race program that only counts laps

Michael


·
Registered
Joined
·
15 Posts
Seems like a fair and positive report, Michael. Its quite encouraging to hear success stories with digital. I've been an early adopter from day one with my home track and had a fair few headaches with it. Something I wouldnt wish to inflict in a race scenario. But you've got me thinking again.

Good luck with the racing and keep us fed with pics!


·
Registered
Joined
·
2,036 Posts
Discussion Starter · #19 ·
So only a couple of pictures

Lee's FIRST Custom ROUTED Lane change giving you your last chance to get to the inside for the Pits



A NEW Addition for the OVAL A BANKED CORNER



More to come soon
