project Mini Sprint ... in the works for the ProNoMag









something went wrong on the wheelbase of the scratchbuilt chassis for the Mini Sprint.
so - correction works ...
and new ball bearings -finally found some with ABEC5 classisfication for 2mm axles, but sadly no flange.
nothing that can´t be dealt with ...
made a groove in the axle and one in the crown gear, a piece of copper wire will be added later, to secure the crown gear from slipping on the axle
See less See more
4
  • Like
Reactions: 3
521 - 540 of 572 Posts
Hi Cameron,

the black one came from facebook, from italy, 3D printed and expensive.
the white one is resin casted by Tilo
the gray one is 3D resin printed from France and is for a proxy race in Hamburg late summer (August?).
the proxy race in Hamburg is for "VW Käfer" with some restrictions. the black one will not fullfill the requirements, the white one yes, but there will be around 8 of the grey "fun cup beetle" bodies.
  • Like
Reactions: 1
Nice work Peter, wonder will that two motor AWD chassis work better than what I tried on Lambos.

Something not so serious for a change.
Picked this flexi trax truck from flea market for 1€.





Artin chassis had correct wheelbase so decided to use one, after all the truck looks it could be Artin.
Added bigger side pans for body mounting.



Carrera GO F1 wheels, had a pair of Ortmann tires so used those, Micro Scalextric box motor, SCX pinion, 2.38 front axle eliminates axle play and pfuetze mini guide.

See less See more
4
  • Like
Reactions: 3
the truck is great, Aki!
nice chassis adaption!

for the running qualities of the DSW-chassis - i ´m not expecting it to be record breaking fast.
BUT i like the handling of the FWD Mini.
and the DSW chassis - hey, i ´m just curios how it will handle.
i built 2GM4WD - 2 goldmine G9330 motor ([email protected]) chassis year before, one motor for rear axle, one for the front.
i handled nice, but was not any faster or better handling as a standard inliner car (at that time).
but with the different handling of the sidewinder setup ( i remember your car from the ProNoMag!!) i want to try it.
  • Like
Reactions: 1
Yes Peter it's always fun to try something different.

Got the truck conversion done.





Came out really nice, runs smooth, quietly and pretty fast too.
I guess the wide body helps a lot.
See less See more
2
  • Like
Reactions: 3
Latest build is a die cast Porsche 996? I've cut the original under pan and glued a micro scalex chassis in as a pod I enlarged the axle holes to take a 332 axle , Original gear also reamed to fit . Currently on Carrera Impreza rear wheels but these will be changed later to match the fronts . So far it runs well However I plan to vac form a shell from the original .
Computer Hood Input device Personal computer Peripheral



Automotive parking light Car Tire Wheel Vehicle

Computer Laptop Personal computer Peripheral Netbook


Tire Wheel Automotive tire Hood Tread
See less See more
4
  • Like
Reactions: 4
nice work!
on a plastic track, you will have some downforce from this motor!
nice use of the front mounting post of the diecast for guide post! did you cut the metal post inside the body? how is the front end fixed now inside the car?
  • Like
Reactions: 1
Currently as it's not finished and the body has opening doors two small pieces of tape through the doors to the chassis but until I get round to making a vac form shell I will add a new post inside.The original front mount was easy to remove with the frame .I need to add some bracing to the rear mount then I can cut away the plastic under the axle so I can remove it easily
  • Like
Reactions: 2
Assembling Alex drawer from Ikea.



It's got 6 low drawers, comes with wheels but without those it's height is little under 60cm and it fits nicely under the track.



Lot of room for cars and extra controllers
See less See more
2
  • Like
Reactions: 4
Some ortman tyres arrived for the Peugeot around the middle of last week but due to real life getting in the way today was the first chance I had to try them . Now I've been very happy with the grip I have obtained from the standard rubber ones after treating them but I did experience a little slippage on the rims as they were not glued onto the rims du to having ordered the ortmans and I wanted to do a comparison . . Any way I swapped them over and did a few laps with the Ortmans and the grip was very good ,Not as good as rubber with treatment but consistent lap times in the high 9s were easily obtained , rubber gives consistent mid 9s .but for a proxy car the Ortmans need less maintainance .. . There are still one or two things I will do to this car to get it on the pace of the rubber shod version ..I think this project has been succesfull to create a bench mark for my competition cars to aim for .
See less See more
  • Like
Reactions: 2


Upgrading another old Motorific conversion.
Added rotating guide and Ortmann tires to the chassis.
Replaced black glasses with clear ones and now working on a driver tray.
Body looks good enough so not gonna repaint it
See less See more
  • Like
Reactions: 5
Just got back to testing the die cast porsche . The surprising thing is it seems better with the heavy body than the bare chassis being much more drivable .However once I cast a resin body or make a vacform I will add a rattle plate and get the weight where it will do more good .It is quite a pleasant drive though but due to the hi c of g it is about 1 sec per lap behind the Peugeot and 2 ses behind the 917 which is on the pace of some of my 1/32 cars , How it will be on urathanes or rubber remains to be seen I suspect maybe 1/2 a sec slower than the sponge . I'm waiting for some silicon and casting resin arriving so I can get on with the messy process of body making .
See less See more
  • Like
Reactions: 2
Making bases to new trees, just wanted to add some variety to the trees on my track scenery

See less See more
  • Like
Reactions: 3
I received my silicon and resin for my body mould from MB fibre glass today . A very excellent service .and a good price too .I wont get chance to make the mould until Monday as I have to play at a festival in the Yorkshire Dales this week end and wont be fit to do any thing till then . I'm getting too old for Rock n Roll ? (no I'm not !!!!!) First ones will be the Porsche and maybe a Dodge Viper If I have enough silicon I will also make some tyre moulds
Fibreglass Supplies | Silicone Moulding Rubber | Casting and Polyester Resins - mbfg.co.uk
  • Like
Reactions: 2
Started updating one more old Ideal Motorific conversion, Mako Shark Corvette



Tried to create the Mako Shark look back then but the result was pretty horrible.

Changed the tires to the shortened Carrera chassis and added a printed pfuetze braid guide.
Still work to be done, new body posts and gluing and truing the rear tires



Stripped the body from paint and after spraying some primer the body looked surprisingly smooth.
Painted the body with silver, thought that light colour would maybe make the car look "smaller".
It is a pretty big body, 1/40 scale or even bigger.
But now I'm having second thought, silver looks bit dull.



So not sure, maybe I should get something like Tamiya TS-53 deep metallic blue and then try to add white bottom with airbrush to get this look I tried to originally create



🤔
See less See more
4
  • Like
Reactions: 3
Go for it! I think it will come out looking sharp.
  • Like
Reactions: 2
Go for it! I think it will come out looking sharp.




Too much white on side of the car but at least I tried.
But let's see how it looks when these side pipes that I made from 4 and 3mm brass pipe are fitted

See less See more
3
  • Like
Reactions: 2
Technically, the white may be a little high, but as you know when you scale things down very small sometimes you have to "cheat" some proportions in order to get the model to "look" correct to the eye. I wouldn't rule out that you have succeeded in doing that here whether it was intentional or not ;-)

What did you do to get the texture on the bodies of exhaust pieces?
  • Like
Reactions: 1
Thanks Cameron, the white came little too high by accident, you know how it is when you try be very careful and then oops.
It's not that bad, no need to repaint the body with blue and try again.

Exhaust is covered with something like this


Cut fitting piece, rolled around and glued from the back with few drops of CA glue.
Painted the brass pipe with silver marker first.
Aluminium pipe could have been better but didn't have any
  • Like
Reactions: 1

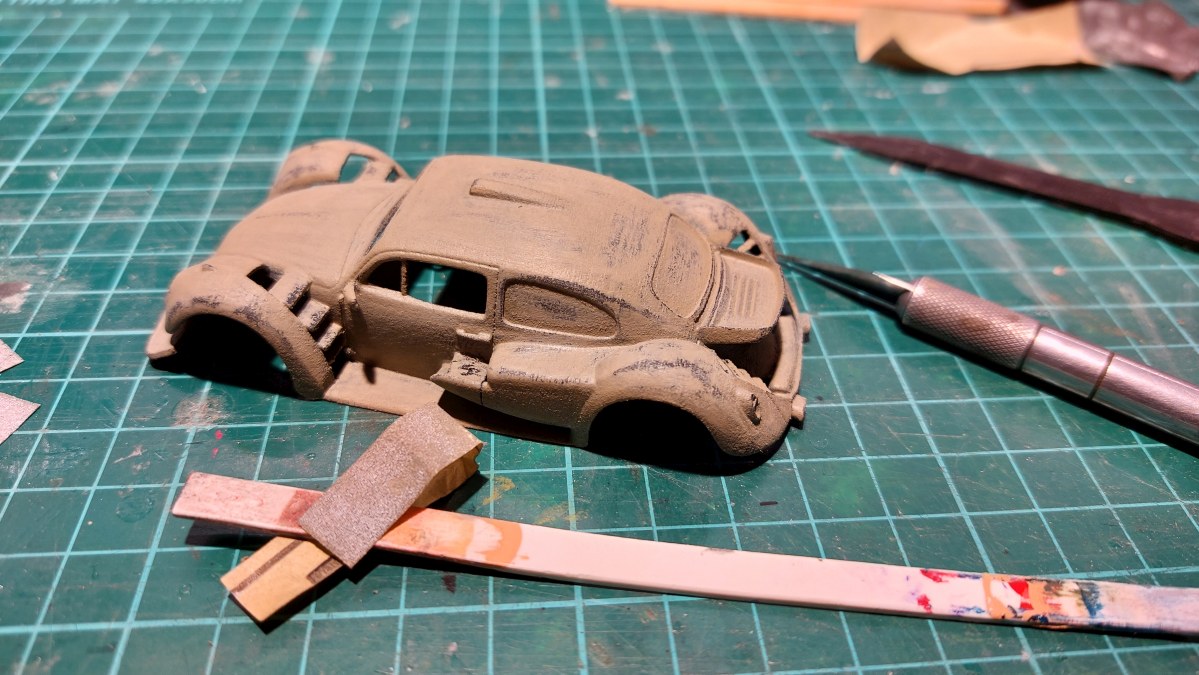

working on the Frankenbug ... sprayed with automotive filler and sanded. should be good for the first layer of paint now (finally!)

and trying to make foam tires out of a sandal, a great tip from Roland!
cutting the donuts with a drill bit made for ceramic tiles.
See less See more
2
  • Like
Reactions: 3
Is that the body you were selling earlier and Tilo tried to make a mould of it or something?
Yes the filler primer can do miracles, I use that now all the times.
Looks like a lot of sanding to make those tires round, great tip though.
  • Like
Reactions: 1
